The self-prime pumps used today are all loaded on trucks and moved and positioned by the wheels at the site. When the adaptability of the site is limited, and multiple people and cranes are required for installation.

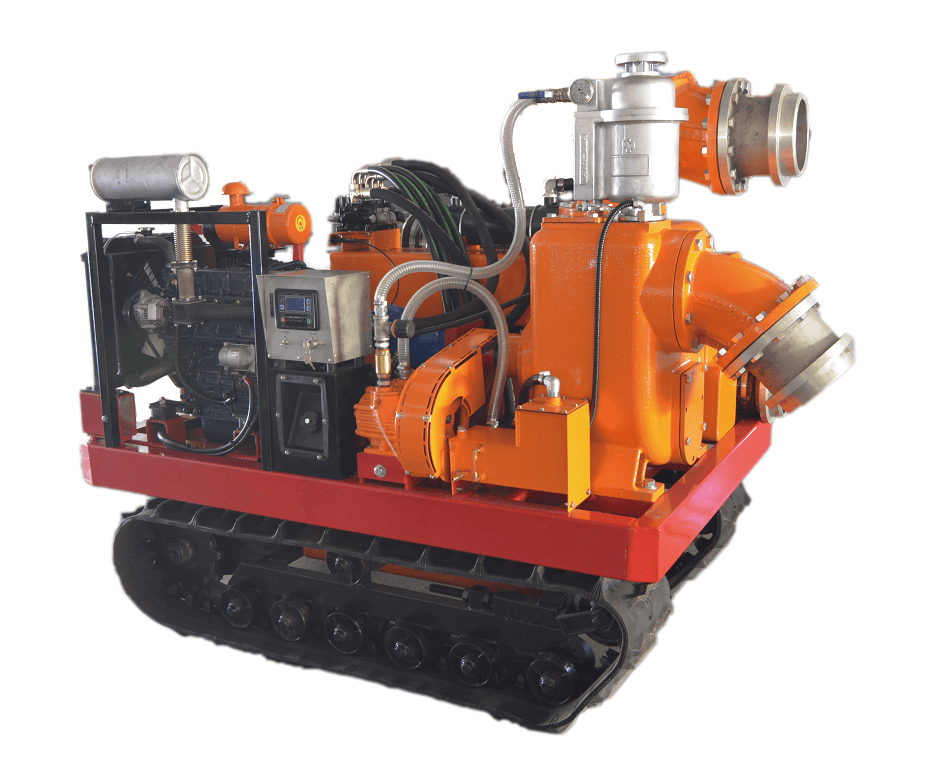

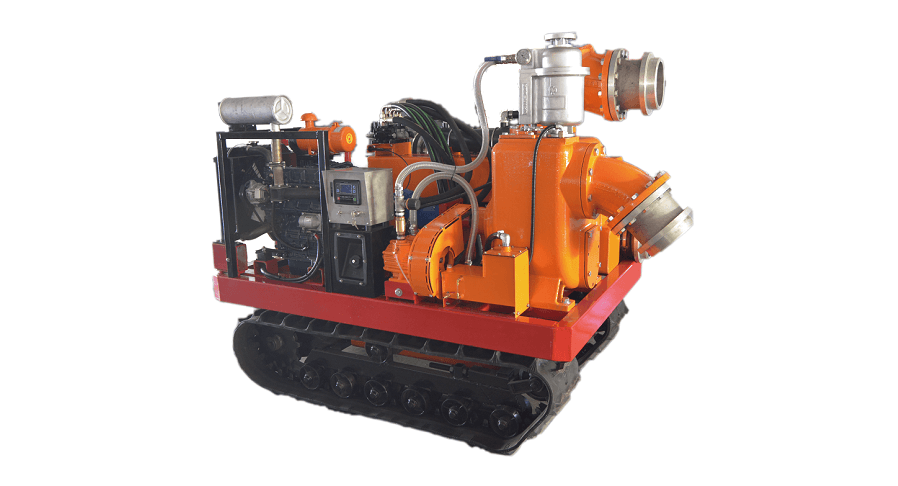

  In order to solve the above problems, Chuan Yi invested in the research and development of a hydraulic self-priming pump, which adopts hydraulic tracks chassis and comes with a vacuum system and self-priming pump, diesel engine driven hydraulic pump and hydraulic lift auxiliary installation system can adapt to various road conditions, and terrain, reducing installation manpower and crane truck usage time, greatly reducing pumping costs and increasing convenience.


Advantages of Hydraulic System
  The energy loss of the hydraulic system is small and efficiency is high in the transmission process .
  The hydraulic system is small in size, light in weight and can be compact design.
  The hydraulic system has a simple structure, easy to use, high reliability,easy to maintain and long service life.
  The hydraulic pump starts smoothly and makes little noise.
  The flow and pressure of the pump can be adjusted as needed.
  The hydraulic track chassis has a strong load capacity and can transport inlet and outlet water pipes, etc.

Optional accessories

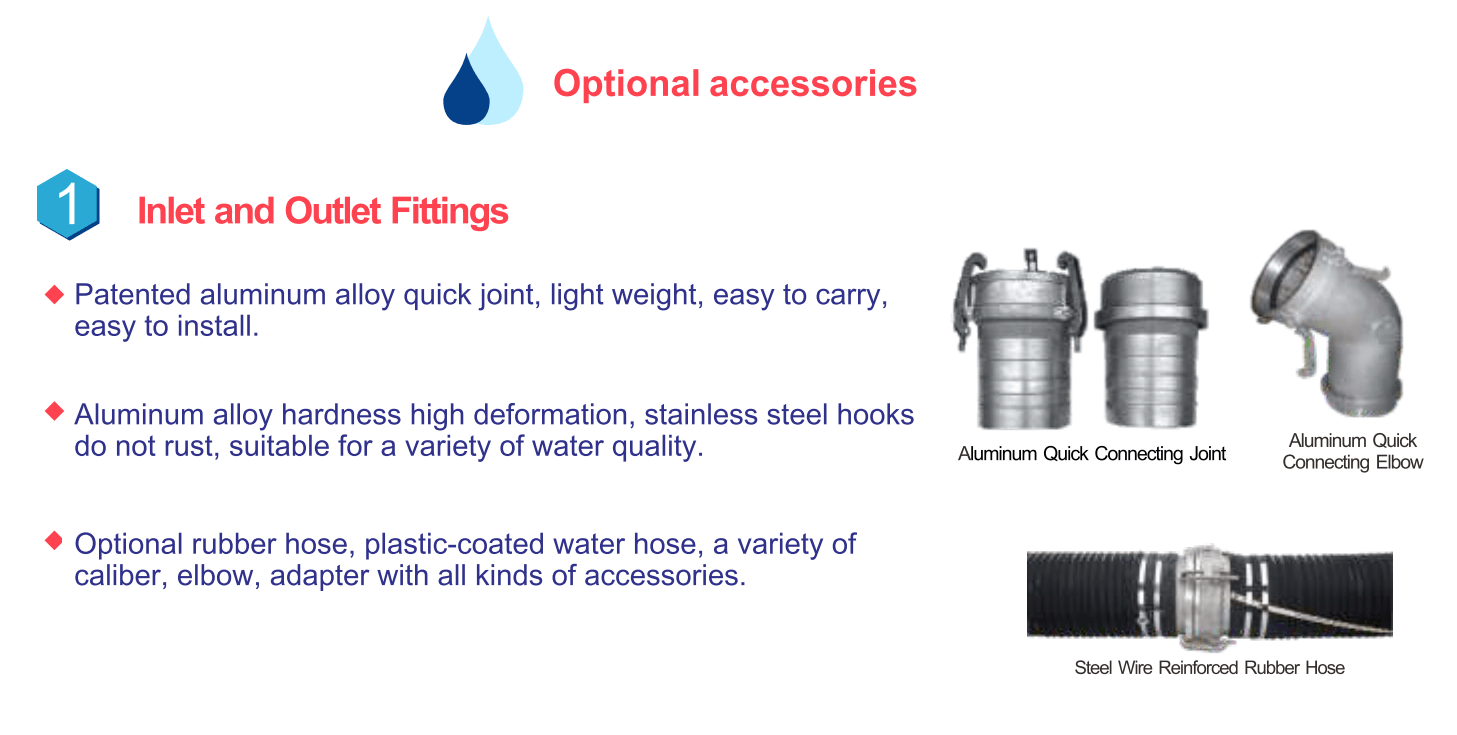

1. Inlet and Outlet Fittings
♦ Patented aluminum alloy quick joint, light weight, easy to carry, easy to install.
♦ Aluminum alloy hardness high deformation, stainless steel hooks do not rust, suitable for a variety of water quality.
♦ Optional rubber hose, plastic-coated water hose, a variety of caliber, elbow, adapter with all kinds of accessories.

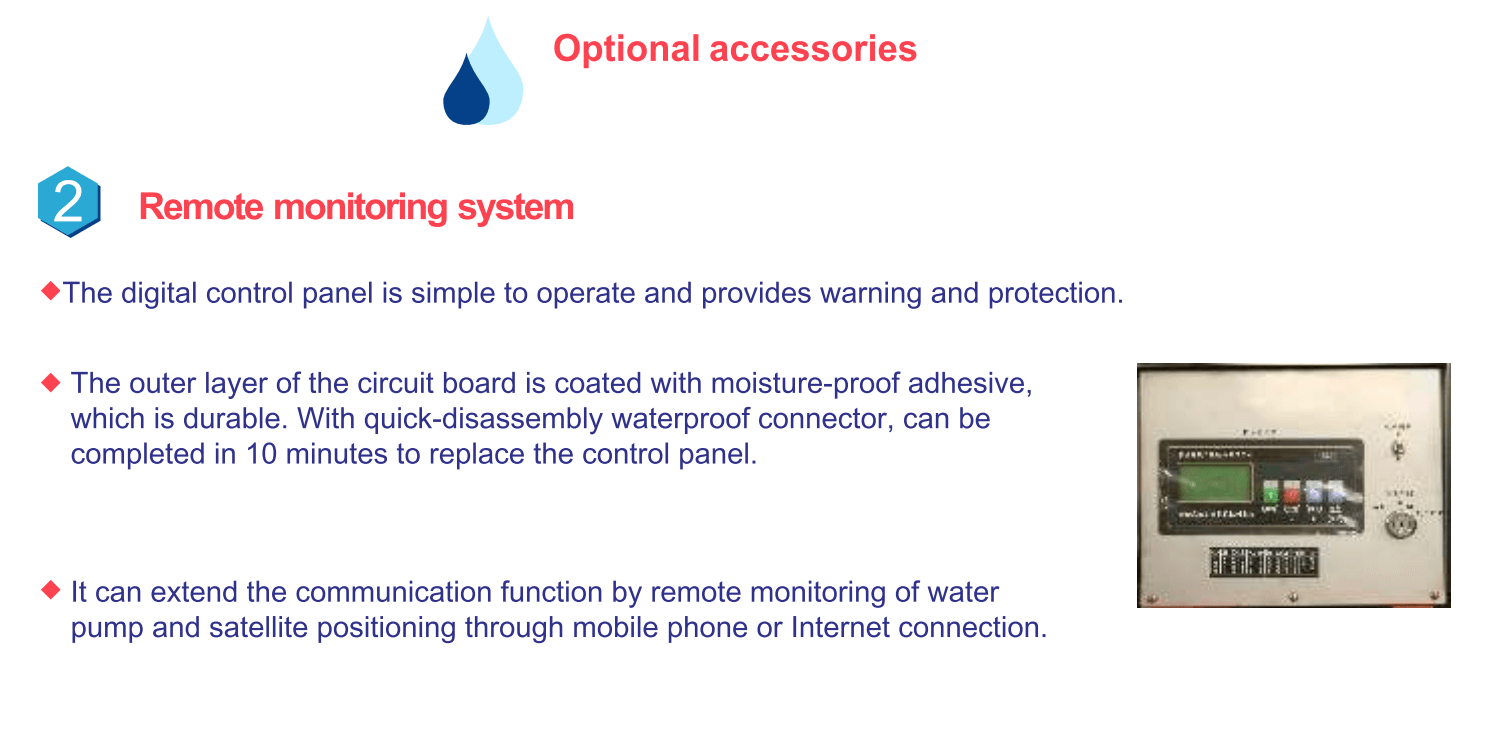

2. Remote monitoring system
♦ The digital control panel is simple to operate and provides warning and protection.
♦ The outer layer of the circuit board is coated with moisture-proof adhesive, which is urable. With quick-disassembly waterproof connector, can be completed in 10 minutes to replace the control panel.
♦  It can extend the communication function by remote monitoring of water pump and satellite positioning through mobile phone or Internet connection.

3. Remote control operating system
   The use of wired or wireless remote control hydraulic tracked pump can improve efficiency without guiding person, and operate more safely, increasing accuracy and continuity during work. In addition, the controller buttons are clearly labeled and easy to leam.

4. Auxiliary mounting crane

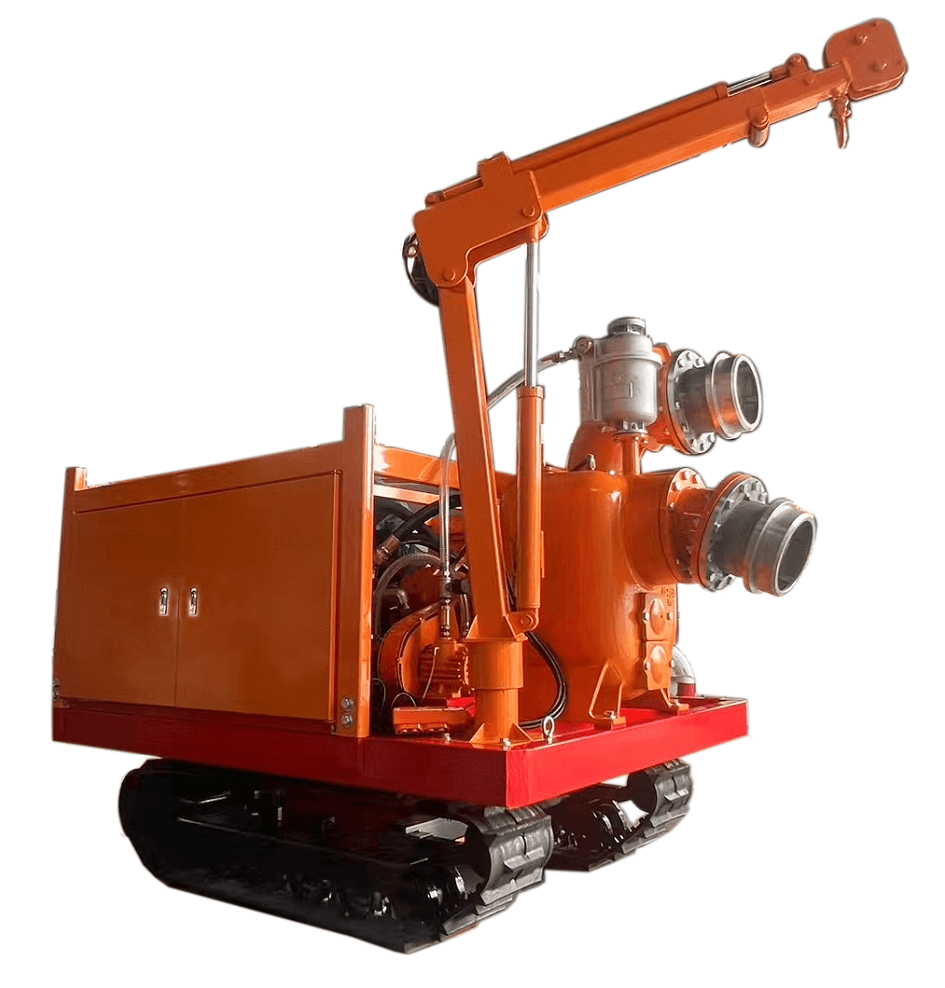

   Hydraulic lifting crane, with three-section telescopic rod and maximum length is 3m, crane can lift about 1.2m height, the maximum lifting capacity is about 1000KG, with manual rotating function, it is suitable for installing or disassembling the inlet and outlet water pipes at the pumping site, and is convenient for disassembly and assembly, labor-saving and cost-saving.


Applications
1. The groundwater control or the basement de-water.
2. The sewage water drainage.
3. Flood waters drainage promptly.
4. Drain off water in the suburbs.
5. Water control for aqua farm.
6. Draining water at street or underground passage.
