Features

The motor is constructed to lubricate by water, internal filling includes pure water. Quality is reliable and durable, without complex maintenance, excellent electricity properties and high efficiency. Stator outer tube made of stainless steel welding, stainless steel inner lining, filling by epoxy fill insulation effect provide good corrosion resistance, heat dissipation, anti-deep water pressure to use.

Function Explanation

• Super lower suction level, no electricity leakage.
• Centrifugal impeller design increase pump head.
• Two pair of mechanical seals and thrust bearings increase anti-wear ability and long life.
• Precisely impeller balance calibrate by balancing machine. The pump run smoothly and silently.
• Safety design makes pump with 24 hours-operation ability.
• Motor shaft directly connect to impeller for the best energy saving.
• Pump design are qualified as CNS and NEMA standard.

Specification

Range of power：

• 5 HP ~ 1000 HP
• 1.5 KW ~ 300 KW

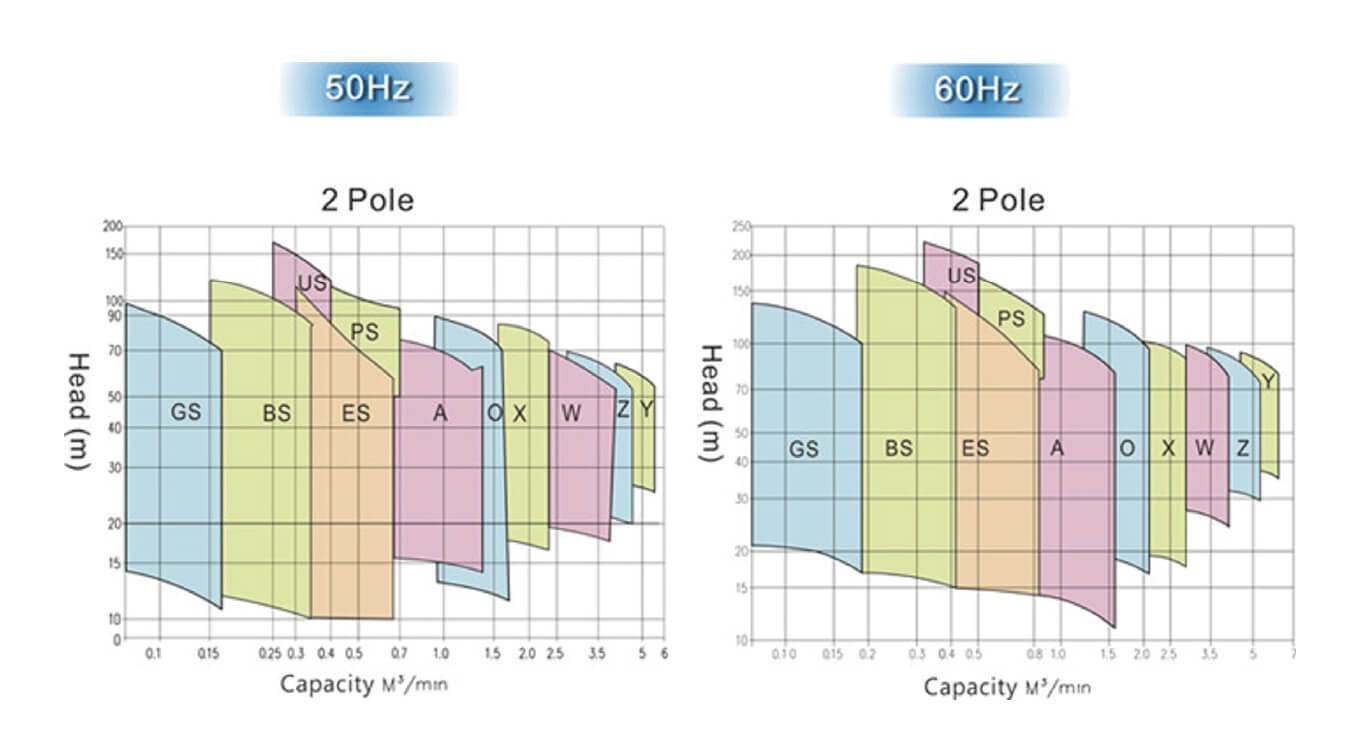

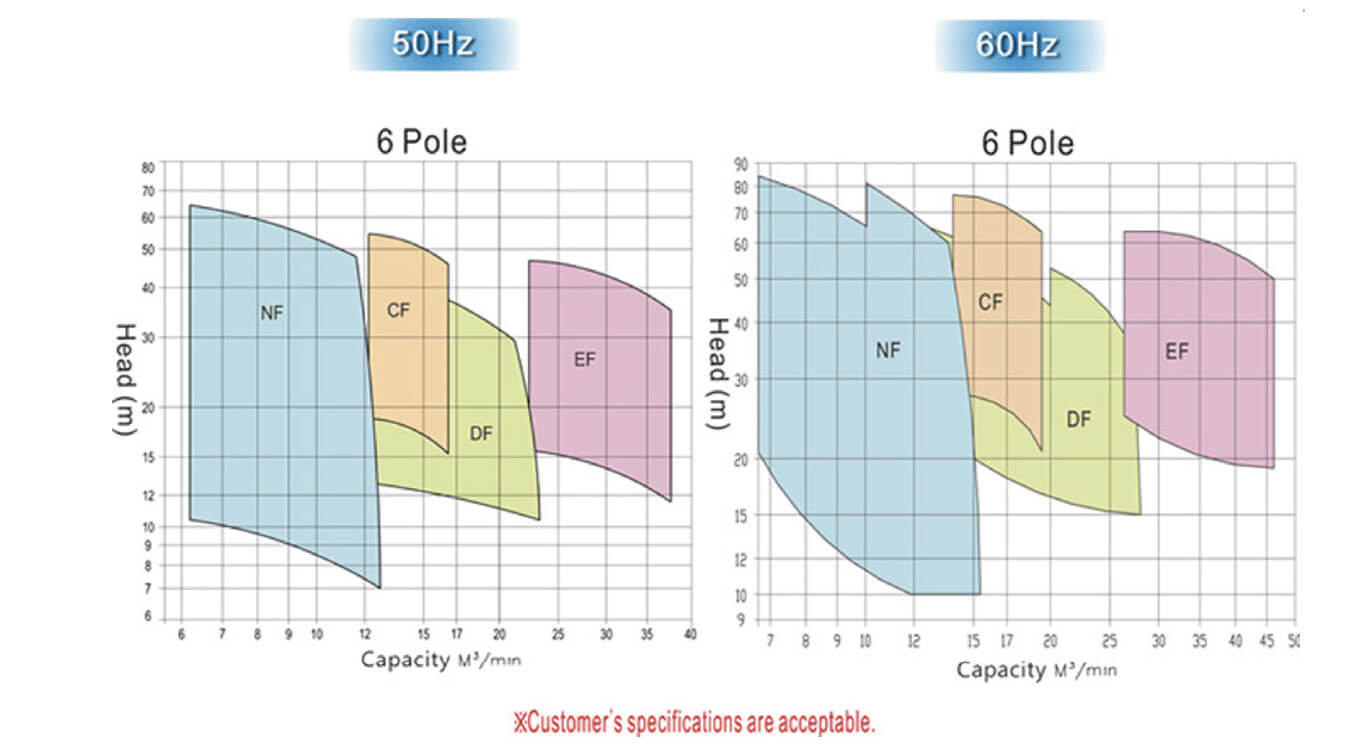

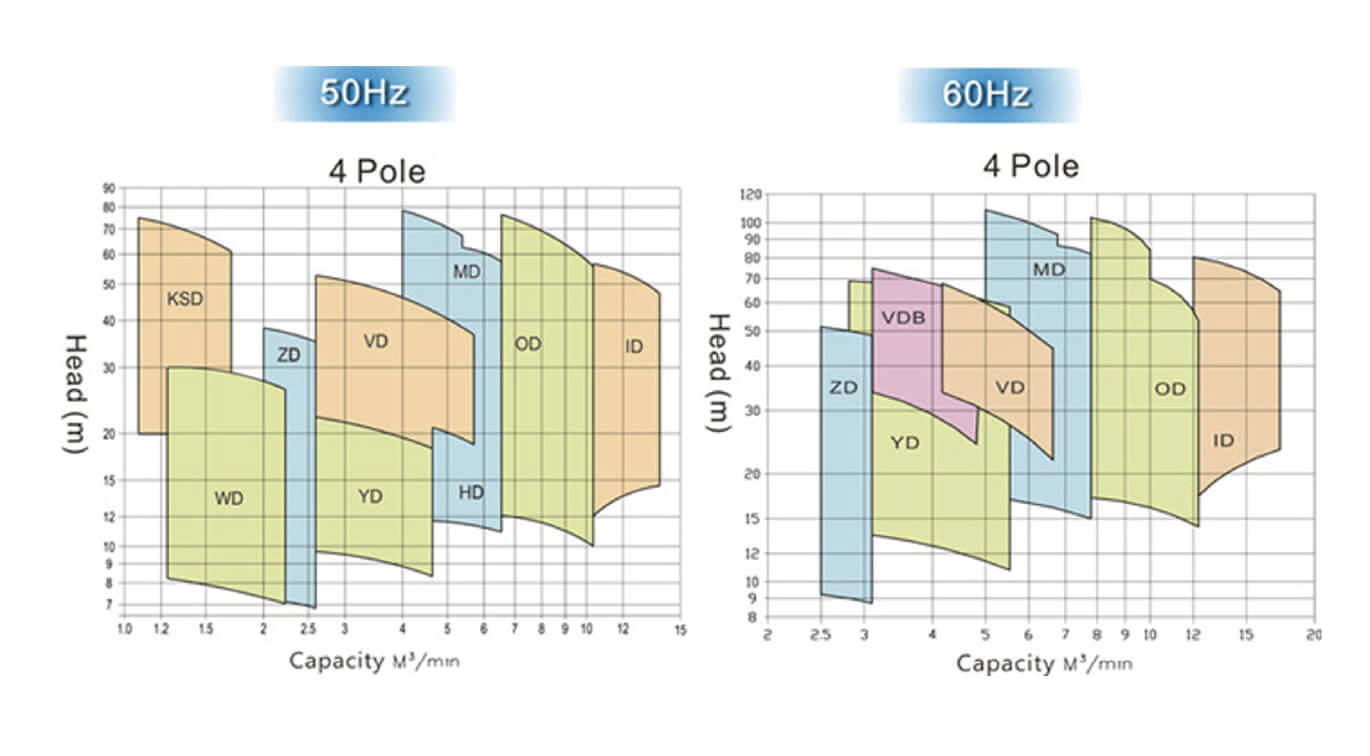

Range of head：

• 3M ~ 300 M
• 10 ft~ 1000 ft

Range of capacity：

• 26 GPM ~13200 GPM
• 0.1 m³/min ~50 m³/min
• 140 CMD ~ 72000 CMD
