Features

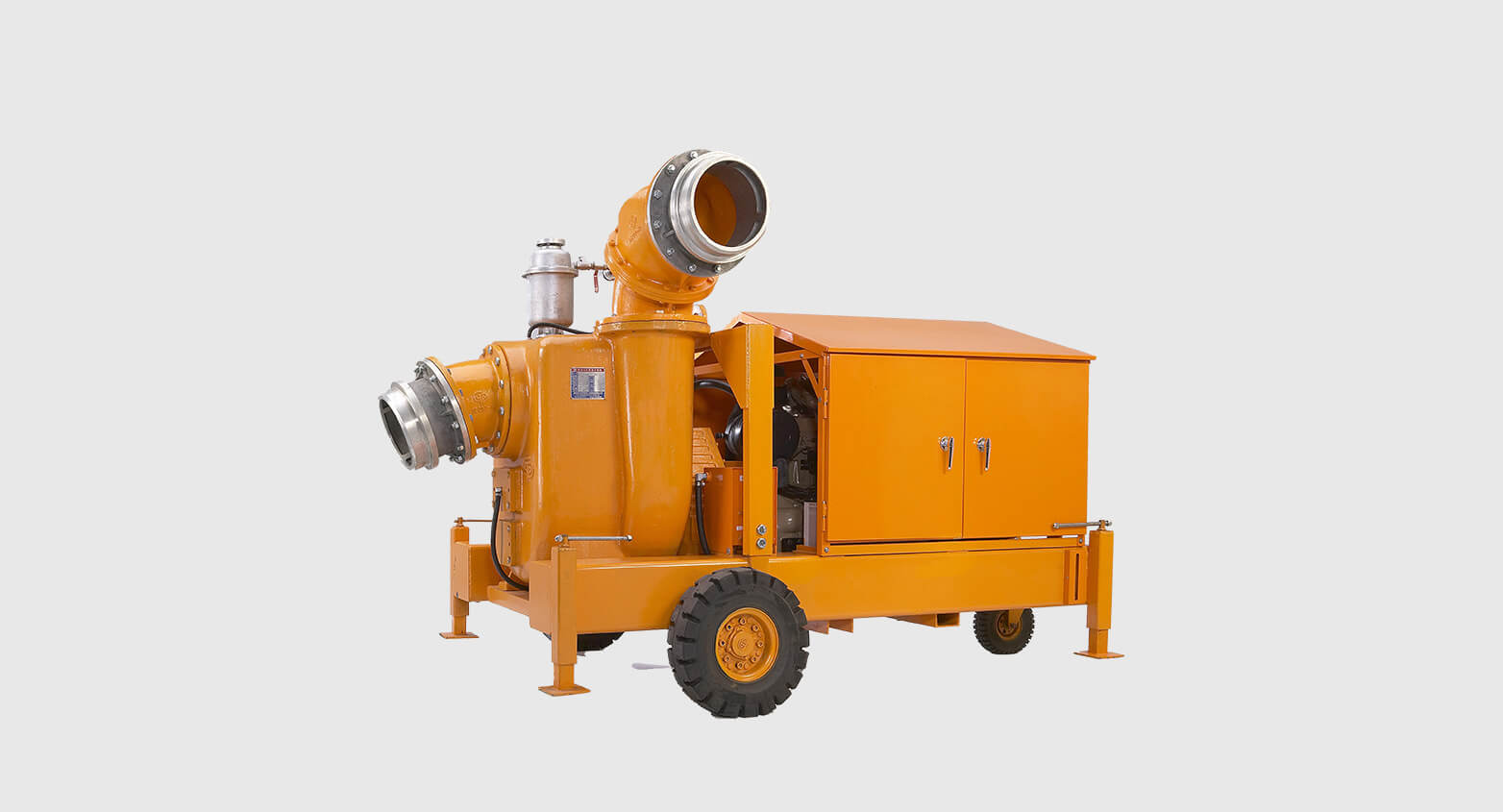

The pump is driven by diesel engine that drives this pump directly. The pump equipped non clog impeller and vacuum system. While impeller is rotating and vacuum pumps synchronized, that discharge air and self priming water is finished. It is not necessary to fill the pump casing with water. Therefore, this pump can drain off water effectively. For diesel driven versions, the engine is easy reach for changing oil, air filter, fuel filter and maintenance. The compact dimensions of the units facilitate transport and storage. Solids handling, dry-running and portability make the CPM series the perfect choice for dewatering and flood controlling applications.

• Auto prime pumps have a special design vacuum system that can detect water automatically, when there is no water inlet.
• The special design chamber can separate water and air. The pump will fill water in few minutes automatically.
• Non-clog design impeller, can pass large solid. The pump has clean hole for cleaning sediment.
• Engine speed adjustment tool, allow you control the rotational speed.
• Advanced control systems have warning and protective functions for your option.
• The patent aluminum-made quick connection joint is easy to operate and light weight. The rubber pipe can match the connecting joint firmly and closely.
• Light weight and small size, easy to operate and moveable. This pump is applicable to all kinds of emergency pumping.

Pump Priming Theory

• A. While motor starts working, the vacuum pump draw out the air from pump.
• Vacuum chamber assisted vacuum pump in separating water and air.
• Once all of the air has been expelled from the suction pipe, the pump is primed and works like a normal centrifugal pump. The pump can also work with an air-liquid mixture.

Vacuum Assistant System

• The air is sucked out of pump and pipes through vacuum chamber when the engine is started.
• The vacuum chamber works to separate the air and water, and prevent the water sucked into the vacuum pump.
• The vacuum pump is oil-lubricated, it can operate for long time to assist the pump keeping the vacuum degree.
• The oil tank passes the air out and collects the oil gas, circling the oil to vacuum pump.

Pump Special Design

• Check valve is metal and rubber coated. Therefore, air is no leakage.
• Patented vacuum chamber is automatic work that water won’t get into vacuum pump.
• Pump equipped with water detect sensor. Pump will stop automatically if pump doesn't prime in 3 minutes.
• Pump is compact because pump and gear box use the same shaft.
• Gear box equipped with cooling device that connect to pump. Cooling device can provide function of heat exchange and cooling. With filter to prevent pump from clogging and easy to clean.
• Big solid can pass because of non clog impeller.
• It is easy to disassemble and clean because of pump with two cleaning holes.
